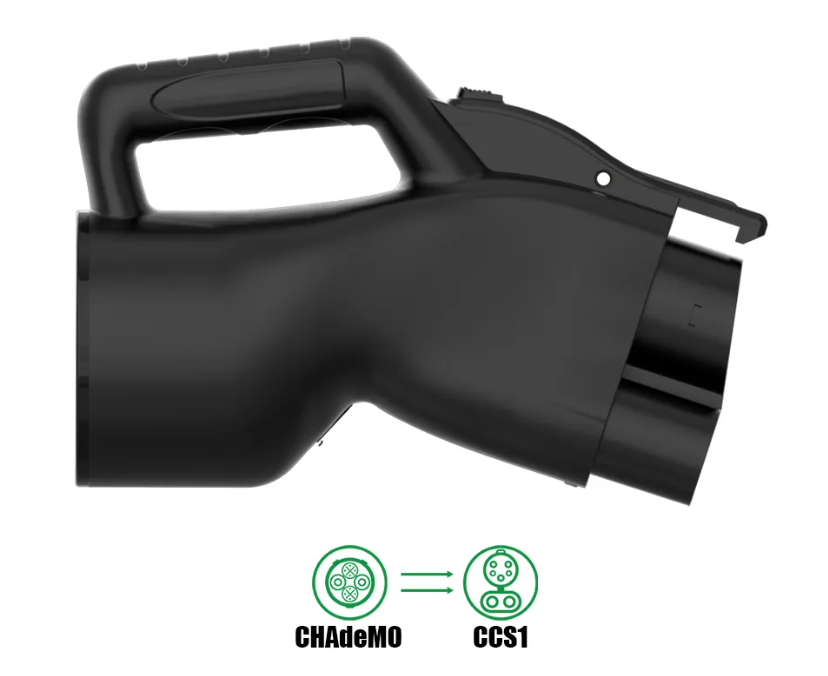

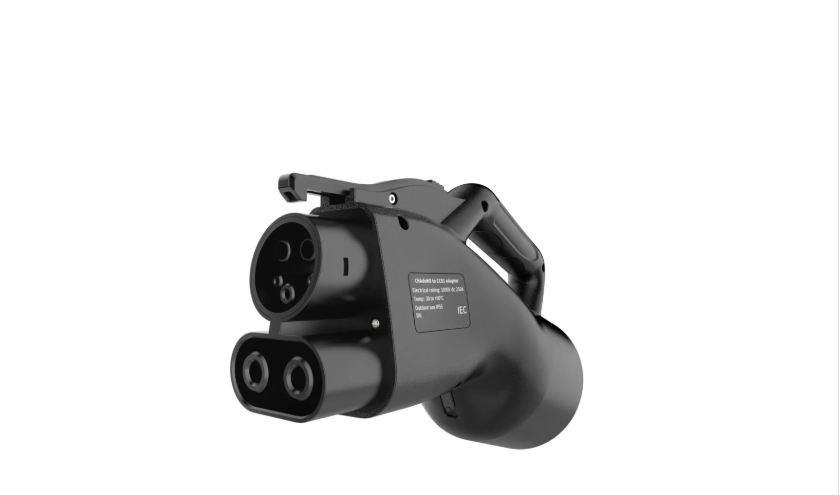

CHAdeMO to CCS1 adapter
EV Charging Adapter
CHAdeMO to CCS1 adapter
CE / UL Certified
5-Year Warranty
OEM / ODM Available
Fast Delivery
* Wholesale pricing available. Contact us for bulk orders.
Product Details
FEATURE
1.High Current Capacity: Rated current 125A, maximum current 250A, supporting up to 50kW fast charging power (compatible with CHAdeMO 1.0 protocol).
2.LED Status Indicator: Clearly displays charging status (standby / charging / fault) for easy monitoring.
3.USB Type-C Port: Supports firmware updates to maintain compatibility
4.with new vehicle models and charging station protocols.Official
Association Endorsement: Manufactured by our professional factory, an official member of the CHAdeMO Association, ensuring compliance with protocol standards.
5.Wide Compatibility: Works with Nissan Leaf, electric buses, and Tesla Model S/X via original manufacture‘r s CHAdeMO adapter.
1.High Current Capacity: Rated current 125A, maximum current 250A, supporting up to 50kW fast charging power (compatible with CHAdeMO 1.0 protocol).
2.LED Status Indicator: Clearly displays charging status (standby / charging / fault) for easy monitoring.
3.USB Type-C Port: Supports firmware updates to maintain compatibility
4.with new vehicle models and charging station protocols.Official
Association Endorsement: Manufactured by our professional factory, an official member of the CHAdeMO Association, ensuring compliance with protocol standards.
5.Wide Compatibility: Works with Nissan Leaf, electric buses, and Tesla Model S/X via original manufacture‘r s CHAdeMO adapter.
Specifications
| Rated power | Rated 50kw (Max. 250kw) |
| Rated voltage | 500V DC (Max. 1000V DC) |
| Rated current | 250A DC Max Cont |
| Protection Class | IP54 (coupling state) |
| Operating temperature | -30~50°C |
| Storage Temperature | -40°C to +85°C |
| Weight (net) | 2.3kg |
| Packing size | 350*270*130mm |
| Use environment | outdoor |
